Key Features
- 5-Year Warranty Included
- High-precision magnetic induction sensors
- Conveyor auto-stop safety system
- Compact, space-saving industrial design
- Operator-friendly control panel with LED
- Anti-interference capability
Warranty & Support
5-Year WarrantyFree Calibration (6 months)Priority SupportSpare Parts AvailableInstallation & Training Included
Ideal Applications
GarmentsHome textilesShoesGlovesCoir matsFood industries

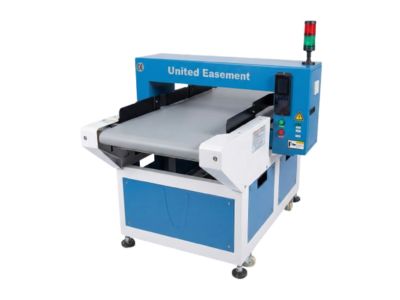

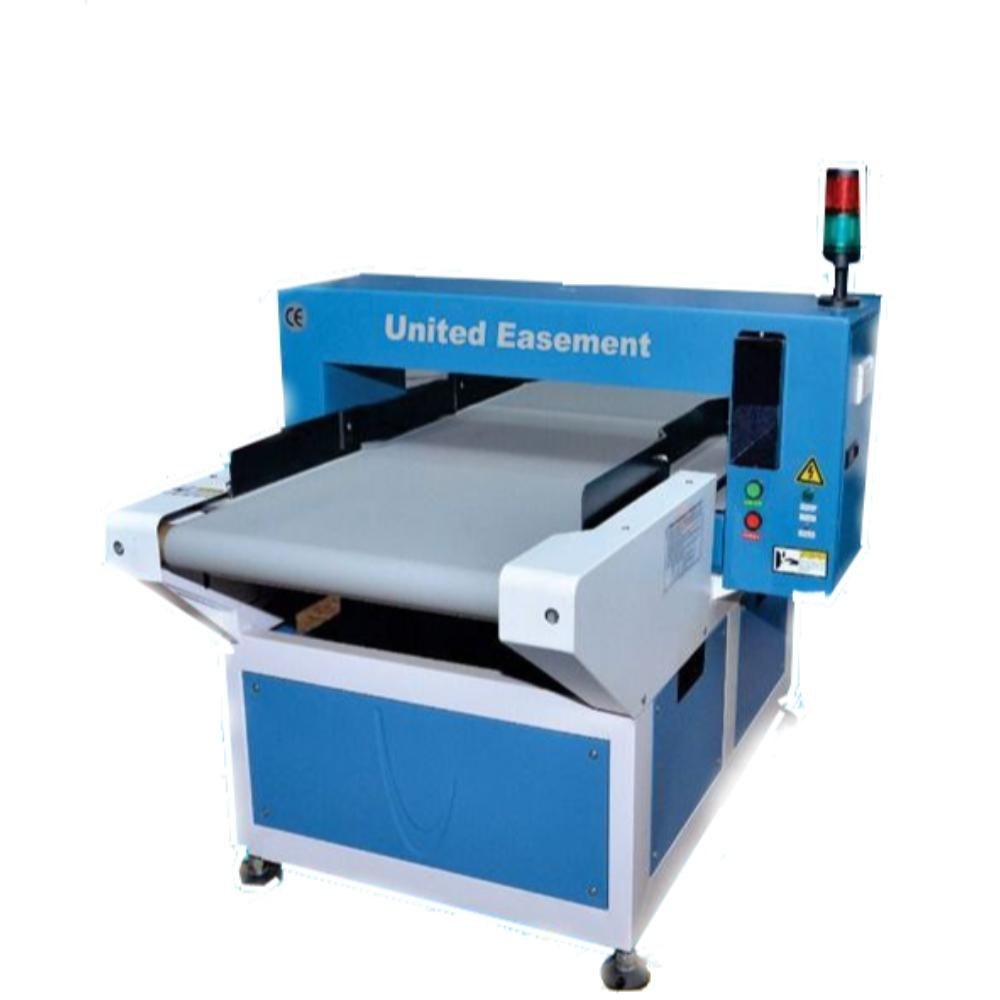

Needle Detector Machine HD-650C – 10 mm / 15 mm / 20 mm / 30 mm
HD-650C is used for garment inspection to detect magnetic metal contaminants. It offers stable sensitivity, stepless adjustment, and an automatic buzzer with belt stop for continuous factory use.
Technical Specifications
| Specification | 10 cm | 15 cm | 20 cm | 30 cm |
|---|---|---|---|---|
| detecting Method | Magnetic Induction | Magnetic Induction | Magnetic Induction | Magnetic Induction |
| detecting Ability | 1.0 mm metal | 1.2 mm metal | 1.5 mm metal | 2.5 mm metal |
| detecting Width | 600 mm | 600 mm | 600 mm | 600 mm |
| detecting Height | 100 mm | 150 mm | 200 mm | 300 mm |
| alarm Method | Buzzer & Belt Stops | Buzzer & Belt Stops | Buzzer & Belt Stops | Buzzer & Belt Stops |
| belt Speed | 30 m/min | 30 m/min | 30 m/min | 30 m/min |
| power Supply | 230 V, Single Phase | 230 V, Single Phase | 230 V, Single Phase | 230 V, Single Phase |
| rated Output | 110 W | 110 W | 110 W | 110 W |
| detecting Adjustment | Stepless | Stepless | Stepless | Stepless |
| frequency | 50 Hz | 50 Hz | 50 Hz | 50 Hz |
| dimension | 1650×1050×900 mm | 1650×1050×1100 mm | 1650×1050×1300 mm | 1650×1050×1600 mm |
| weight | 190 kg (Approx.) | 210 kg (Approx.) | 230 kg (Approx.) | 250 kg (Approx.) |
